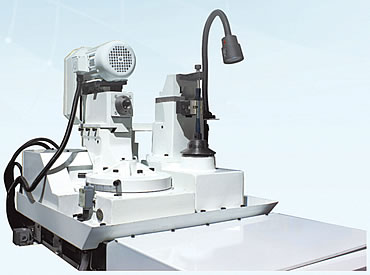

XK500D CNC Roll Processing Machine performance parameters brief introduce
XK500D multifunctional combined CNC roll machine has characters of high automatic degree, high precision, easy control, safe and so on. And the cutting efficiency has been improved significantly. The machine can machine crescent slots on nodular iron rolls, tungsten carbide roll collars, high speed steel rolls.lt can machine standard same high slots and spiral slots which meet British BC. Japanese JIS and Indonesia SNl standards. Machine can finsh milling groove by knife throwing institution, lettering and milling groove by swing head and milling trademark in one operation, precision universal cutter grinde.
|
加工軋輥最大直徑D |
500mm |
|
|
加工軋輥長度L |
Max. rolling length |
100~2500mm |
|
適用螺紋鋼規格d |
Suitable for screw steel spec d |
6~50mm |
|
飛刀銑頭主軸最高轉速n |
Highest speed of milling head spindle |
550rpm |
|
擺動銑頭主軸轉速n |
Swivel milling head spindle rotation speed |
2850rpm |
|
頭架主軸錐孔 |
Head spindle taper hole |
莫氏5號 Mohs taper hole No.5 |
|
頭架主軸用卡盤 |
Head spindle chuck |
400mm四爪 four jaw |
|
擺動銑頭主電機功率 |
Main spindle power of swing milling head |
1.1Kw∽3相380V/50HZ 1.1Kw∽3phase380V/50HZ
|
|
工件回轉進給速度 |
Workpiece rotary feed speed |
50~600°/min |
|
工件回轉快進速度 |
Workpiece rapid feed speed |
4000°/min |
|
擺動銑頭擺動速度 |
Swing milling head's swinging speed |
40~600°/min |
|
冷卻泵電機 |
Coolant pump motor |
120W∽3 phase 380V/50HZ
|
|
控制系統
伺服驅動、電機
|
Control system Servo drive, motor |
德國西門子SINUMERIK 808D
日本安川
Germany SINUMERIK 808D or
Japanese Yaskawa
|
|
控制系統工作電源 |
220V 50Hz |
|
|
編程最小設定 |
0.001mm、0.001° |
|
|
伺服電機輸出扭矩 |
X軸（飛刀軸）：28.4 N.m；4.4KW
X axis (cut shaft )
Y軸（軋輥軸）：11.5 N.m；2.0KW
Y axis (roll shaft)
Z軸（擺動軸）：8.34 N.m；1.3KW
Z axis(swing shaft)
C軸（進給軸）：11.5 N.m；2.0KW
C axis(feed shaft) |
|
|
機床外形尺寸（長×寬×高） |
4200×1500×1700mm |
|
|
機床重量（約） |
6500Kg |
|
